TVS Jupiter ZX
The TVS Motors Company announced to registered a new variant with the suffix, TVS Jupiter ZX. The new variant comes blessed with a drum brake and new paint scheme that give a dynamic look to the scooter while the engine specifications remaining the same. Recently in 2017 Jupiter relaunch their scooter which blessed with BSIV engine and AHO (Automatic Headlamp On).

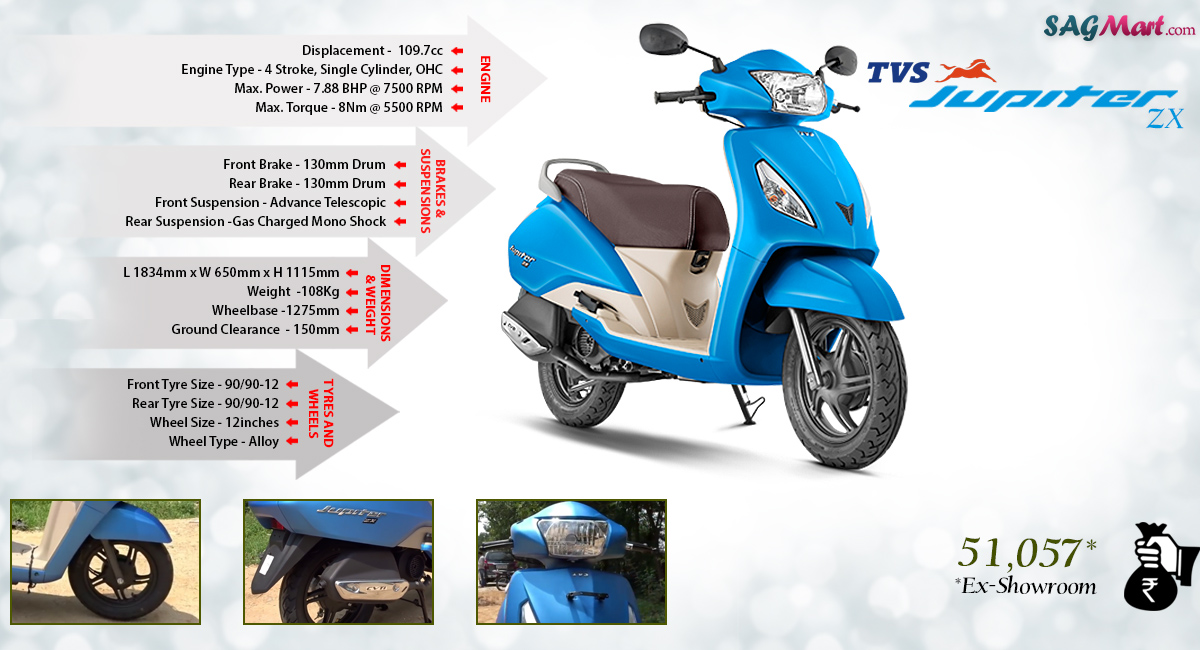

TVS Jupiter ZX Full Specifications
ENGINE SPECIFICATIONS
Displacement (cc) | 109.7 |
Engine Type | 4 Stroke, OHC Engine, BSIV Engine |
No. of Cylinders | Single |
Maximum Power | 7.88 BHP @ 7500 RPM |
Maximum Torque | 8Nm @ 5500 RPM |
Starter System | Electric & Kick Start |
Ignition | Digital IDI with Ignition Map Technology |
Cooling System | Air Cooled |
Gears | Automatic |
Clutch | Primary CVT & Secondary Gear Box |
Bore (mm) | 54 |
Stroke (mm) | 49 |
CHASSIS AND SUSPENSION
Chassis Type | High Rigidity Underbone Type |
Front Suspension | Advance Telescopic Suspension |
Rear Suspension | Gas Charged Mono Shock |
BRAKES
Front Brake | 130 mm Drum |
Rear Brake | 130 mm Drum |
TYRES AND WHEELS
Front Tyre Size | 90/90-12 |
Rear Tyre Size | 90/90-12 |
Wheel Size (inches) | 12 |
Tyres Types | Tubeless |
Wheel Type | Alloy |
ELECTRICALS
Battery | 12V, 5 Ah Flooded |
Tail Light | 12V, 2W/1.5W LED |
Dashboard | Analogue |
Headlamp | AHO (Automatic Headlamp On) |
DIMENSIONS & WEIGHT
Length (mm) | 1834 |
Width (mm) | 650 |
Height (mm) | 1115 |
Ground Clearance (mm) | 150 |
Wheelbase (mm) | 1275 |
COLOR
Colors | Royal Wine, Stallion Brown |
FUEL ECONOMY AND CAPACITY
Fuel Consumption City (kmpl) | 45.00 |
Fuel Consumption Highway (kmpl) | 50.00 |
